Raup’s model

In this tutorial, you will use Raup’s model (Raup & Michelson, 1965; Raup, 1966) in both directions: generate coiled shells from parameters and estimate the parameters from a shell.

Raup’s model describes a shell as a trajectory of a generating curve, which mimics the aperture shape, that expands, rotates, and translates along a fixed coiling axis. Three parameters control the geometry:

• whorl expansion rate w_r: how fast the tube widens per revolution

• translation rate t_r: how fast the coil moves down along the coiling axis

• relative distance of the generating curve from the coiling axis d_r

Setup

# Uncomment if needed
# %pip install "ktch[plot]"

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import plotly.graph_objects as go
from plotly.subplots import make_subplots

from ktch.coiling import RaupModel
from ktch.plot import morphospace_plot

Generate your first shell

RaupModel provides the model. Its inverse_transform takes the parameters and returns a sampled surface. We also pass a sampling grid (theta_range along the growth trajectory, phi_range around the aperture).

theta = np.linspace(0.0, 2.0 * np.pi * 4.0, 240)  # four whorls
phi = np.linspace(0.0, 2.0 * np.pi, 60)

raup_model = RaupModel()
X = raup_model.inverse_transform([1.3, 1.5, 0.2], theta_range=theta, phi_range=phi)
X.shape

(240, 60, 3)

You should see a (n_theta, n_phi, 3) array: n_theta samples along the coil, n_phi samples around the tube, and the last axis holds the (x, y, z) coordinates of each surface point.

Visualize in 3D

Let’s define a small helper that turns a surface array into an interactive plotly figure.

Show definition: plot_surface3d()

Hide definition: plot_surface3d()

def plot_surface3d(X, *, title="", colorscale="Viridis", apex_up=True):
    """Plot a ``(n, n_phi, 3)`` surface array with plotly.

    With ``apex_up=True`` the form is rotated 180° about a horizontal axis so
    the apex points up (the conventional orientation). This is a rotation, not a
    ``z`` reflection, so the coiling direction is preserved.
    """
    X = np.asarray(X, dtype=float)
    if apex_up:
        X = X * np.array([-1.0, 1.0, -1.0])
    x, y, z = X[..., 0], X[..., 1], X[..., 2]
    fig = go.Figure(
        data=[go.Surface(x=x, y=y, z=z, colorscale=colorscale, showscale=False)]
    )
    fig.update_layout(
        title=title,
        width=700,
        height=500,
        scene=dict(aspectmode="data"),
    )
    return fig

fig = plot_surface3d(X, title="Raup's model (w_r=1.3, t_r=1.5, d_r=0.2)")
fig.show()

That’s a coiled shell built from three parameters.

Note

Raup’s model coils along the coiling axis (+z), so the apex sits at the bottom of the raw output. plot_surface3d shows shells apex-up by default (apex_up=True): it rotates the form 180° about a horizontal axis (a rotation, not a z-flip, so the coiling direction is preserved). Pass apex_up=False for the raw orientation.

Orientation of the aperture

The full parameter vector of RaupModel has five entries. Ask the model for their names:

raup_model.get_feature_names_out()

array(['w_r', 't_r', 'd_r', 'delta_r', 'gamma_r'], dtype='<U7')

The last two, delta_r and gamma_r, set the orientation of the aperture (Noshita, 2014). With (0, 0) the aperture lies in the radial-axial plane, as in the classical model; delta_r tilts it about the radial direction and gamma_r turns it about the coiling axis. A 3-entry input, as above, sets both to zero.

To compare several shells at once, we use a second helper that lays out a batch of surfaces in a grid of subplots.

Show definition: plot_surface_grid()

Hide definition: plot_surface_grid()

def plot_surface_grid(surfaces, subplot_titles, *, ncols=None, title="",
                      colorscale="Viridis", apex_up=True):
    """Lay out ``(n_theta, n_phi, 3)`` surface arrays in a grid of subplots.

    With ``apex_up=True`` each form is rotated 180° about a horizontal axis so
    the apex points up (the conventional orientation). This is a rotation, not a
    ``z`` reflection, so the coiling direction is preserved.
    """
    n = len(surfaces)
    ncols = n if ncols is None else ncols
    nrows = int(np.ceil(n / ncols))
    fig = make_subplots(
        rows=nrows,
        cols=ncols,
        specs=[[{"type": "surface"}] * ncols] * nrows,
        subplot_titles=list(subplot_titles),
        horizontal_spacing=0.01,
        vertical_spacing=0.05,
    )
    scenes = {}
    for i, Xi in enumerate(surfaces):
        Xi = np.asarray(Xi, dtype=float)
        if apex_up:
            Xi = Xi * np.array([-1.0, 1.0, -1.0])
        row, col = divmod(i, ncols)
        fig.add_trace(
            go.Surface(
                x=Xi[..., 0],
                y=Xi[..., 1],
                z=Xi[..., 2],
                showscale=False,
                colorscale=colorscale,
            ),
            row=row + 1,
            col=col + 1,
        )
        scenes["scene" if i == 0 else f"scene{i + 1}"] = dict(aspectmode="data")
    fig.update_layout(
        title=title,
        width=900,
        height=350 * nrows,
        margin=dict(l=0, r=0, t=60, b=0),
        **scenes,
    )
    return fig

Passing a (n_samples, 5) array to inverse_transform generates one surface per row, so a comparison is a single call:

params = np.array(
    [
        [1.3, 1.5, 0.2, 0.0, 0.0],
        [1.3, 1.5, 0.2, 0.4, 0.0],
        [1.3, 1.5, 0.2, 0.0, 0.4],
    ]
)
surfaces = raup_model.inverse_transform(params, theta_range=theta, phi_range=phi)
surfaces.shape

(3, 240, 60, 3)

plot_surface_grid(
    surfaces,
    ["delta_r=0, gamma_r=0", "delta_r=0.4, gamma_r=0", "delta_r=0, gamma_r=0.4"],
    title="Orientation of the aperture",
).show()

The leading axis indexes the parameter rows; the rest is the familiar (n_theta, n_phi, 3) surface.

Explore the parameters

We vary one parameter while holding the other two constant to see each effect.

Whorl expansion rate w_r

params = np.array([[1.1, 1.0, 0.0], [2.0, 1.0, 0.0], [10.0, 1.0, 0.0]])
plot_surface_grid(
    raup_model.inverse_transform(params, theta_range=theta, phi_range=phi),
    ["w_r=1.1", "w_r=2.0", "w_r=10.0"],
    title="Whorl expansion rate",
).show()

Translation rate t_r

With t_r = 0 the whorls stay in a single plane (a planispiral); increasing it stacks the whorls into a high-spired form.

params = np.array([[2.0, 0.0, 0.0], [2.0, 1.0, 0.0], [2.0, 4.0, 0.0]])
plot_surface_grid(
    raup_model.inverse_transform(params, theta_range=theta, phi_range=phi),
    ["t_r=0.0", "t_r=1.0", "t_r=4.0"],
    title="Translation rate",
).show()

Relative distance from the coiling axis d_r

d_r (in (-1, 1)) sets how far the generating curve sits from the coiling axis.

params = np.array([[2.0, 1.0, -0.4], [2.0, 1.0, 0.0], [2.0, 1.0, 0.4]])
plot_surface_grid(
    raup_model.inverse_transform(params, theta_range=theta, phi_range=phi),
    ["d_r=-0.4", "d_r=0.0", "d_r=0.4"],
    title="Distance from the axis",
).show()

Estimate the parameters

Now, the reverse direction. transform takes a shell surface and estimates the parameters from it. The "surface" method fits the model directly to a structured surface.

Note

The default estimator="ml_2d" expects lateral and umbilical measurements of a specimen, the conventional measurements of Raup’s model, and is not covered here.

We generate a shell with a known parameter vector, including the orientation, and then try to estimate it.

params_true = np.array([1.3, 1.5, 0.2, 0.3, -0.2])
X = raup_model.inverse_transform(params_true, theta_range=theta, phi_range=phi)

raup_model.set_params(estimator="surface")
params_est = raup_model.transform(X)
params_est.shape

(1, 5)

set_params selects the estimation method; inverse_transform is not affected. transform works on a panel of surfaces. The result has one row per surface. A single (n_theta, n_phi, 3) array is accepted as a panel of one.

pd.DataFrame(
    {"true": params_true, "estimated": params_est[0]},
    index=raup_model.get_feature_names_out(),
)

	true	estimated
w_r	1.3	1.3
t_r	1.5	1.5
d_r	0.2	0.2
delta_r	0.3	0.3
gamma_r	-0.2	-0.2

You should see the five parameters recovered to numerical precision. The "surface" method fits the rigid pose and the scale of the surface together with the parameters. It does not require the shell to sit in any particular position or orientation.

To close the loop, generate a shell from the estimate and compare it with the original:

X_rec = raup_model.inverse_transform(params_est[0], theta_range=theta, phi_range=phi)

rmsd = np.sqrt(np.mean(np.sum((X_rec - X) ** 2, axis=-1)))
print(f"root-mean-square distance: {rmsd:.2e}")

root-mean-square distance: 2.58e-16

X_up = X * np.array([-1.0, 1.0, -1.0])  # apex-up, as in plot_surface3d
X_rec_up = X_rec * np.array([-1.0, 1.0, -1.0])

fig = go.Figure(
    data=[
        go.Surface(
            x=X_up[..., 0], y=X_up[..., 1], z=X_up[..., 2],
            colorscale="Viridis", opacity=0.8, showscale=False,
        ),
        go.Surface(
            x=X_rec_up[..., 0], y=X_rec_up[..., 1], z=X_rec_up[..., 2],
            colorscale="Reds", opacity=0.4, showscale=False,
        ),
    ]
)
fig.update_layout(
    title="Original (Viridis) and reconstruction (Reds)",
    width=700,
    height=500,
    scene=dict(aspectmode="data"),
)
fig.show()

The two surfaces coincide. This is the sense in which transform and inverse_transform are inverses of each other: a parameter vector, the shell it generates, and the parameters estimated from that shell describe the same form.

Note

The "surface" method assumes that rows run along the coil and columns run once around the tube, as in the output of inverse_transform. It uses the coordinates only: the grid values theta_range and phi_range are not needed.

Many shells at once

Both directions work on batches. A (n_samples, 5) parameter array gives a (n_samples, n_theta, n_phi, 3) panel, and transform on that panel gives the parameters back row by row.

params_batch = np.array(
    [
        [1.2, 0.5, 0.1, 0.0, 0.0],
        [1.5, 1.5, 0.2, 0.2, 0.1],
        [2.0, 0.0, 0.05, -0.1, 0.3],
    ]
)
surfaces = raup_model.inverse_transform(params_batch, theta_range=theta, phi_range=phi)
estimates = raup_model.transform(surfaces)

pd.DataFrame(estimates, columns=raup_model.get_feature_names_out())

	w_r	t_r	d_r	delta_r	gamma_r
0	1.2	5.000000e-01	0.10	4.281314e-19	2.258123e-18
1	1.5	1.500000e+00	0.20	2.000000e-01	1.000000e-01
2	2.0	7.999309e-18	0.05	-1.000000e-01	3.000000e-01

print(f"largest absolute error: {np.max(np.abs(estimates - params_batch)):.2e}")

largest absolute error: 1.33e-15

For analysis pipelines, pass as_frame=True to get a tidy long-format DataFrame indexed by (specimen_id, trajectory_id, phi_id). transform accepts this frame as well.

df = raup_model.inverse_transform(
    params_batch, theta_range=theta, phi_range=phi, as_frame=True
)
df.head()

			x	y	z
specimen_id	trajectory_id	phi_id
0	0	0	2.222222	0.0	1.111111
		1	2.216557	0.0	1.217405
		2	2.199626	0.0	1.322494
		3	2.171620	0.0	1.425188
		4	2.132857	0.0	1.524323

Morphospace

A theoretical morphospace is the parameter space viewed through the shells it generates. morphospace_plot from ktch.plot draws a scatter plot in a two-dimensional space and places generated shapes at a regular grid of positions. It expects a reducer (such as PCA) between the axes and the descriptor; here the axes are the parameters w_r and t_r themselves, so the reducer is the identity, and the descriptor is inverse_transform with d_r fixed.

d_fixed = 0.1


def shells_at(w_t):
    """Generate one shell per ``(w_r, t_r)`` row at ``d_r = d_fixed``, apex-up."""
    w_t = np.asarray(w_t)
    params = np.column_stack([w_t, np.full(len(w_t), d_fixed)])
    X = raup_model.inverse_transform(
        params,
        theta_range=np.linspace(0.0, 2.0 * np.pi * 4.0, 120),
        phi_range=np.linspace(0.0, 2.0 * np.pi, 30),
    )
    return X * np.array([-1.0, 1.0, -1.0])  # apex-up, as in plot_surface3d


fig, ax = plt.subplots(figsize=(7, 6))
ax.set_xlim(1.1, 4.5)
ax.set_ylim(-0.5, 3.5)
morphospace_plot(
    reducer_inverse_transform=lambda scores: scores,  # axes are the parameters
    n_components=2,
    descriptor_inverse_transform=shells_at,
    n_shapes=3,
    shape_scale=0.9,
    ax=ax,
)
ax.scatter(estimates[:, 0], estimates[:, 1], zorder=2)
for i, (w, t) in enumerate(estimates[:, :2]):
    ax.annotate(f"shell {i}", (w, t), xytext=(5, 5), textcoords="offset points")
ax.set_xlabel("w_r (whorl expansion rate)")
ax.set_ylabel("t_r (translation rate)")

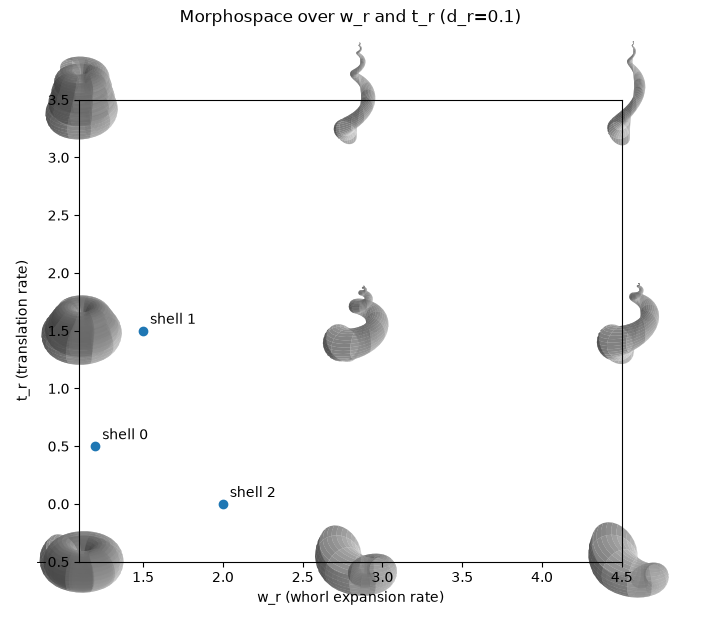

ax.set_title("Morphospace over w_r and t_r (d_r=0.1)");

The insets show the shells generated at the grid positions; the points are the shells estimated in the previous section. Generation places a shell at a point of the morphospace; estimation reads the point back from the shell. Use the first to design shells and the second to locate specimens.

See also

• Growing tube model to do the same with the growing tube model, including heteromorph (non-constant) growth.

• Sample evenly along a coiled shell to space the samples evenly along the shell instead of evenly in theta.

• Theoretical morphological models of coiling for the theory behind Raup’s model.

References

• Noshita, K., 2014. Quantification and geometric analysis of coiling patterns in gastropod shells based on 3D and 2D image data. Journal of Theoretical Biology 363, 93–104.

• Raup, D.M., Michelson, A., 1965. Theoretical Morphology of the Coiled Shell. Science 147, 1294–1295.

• Raup, D.M., 1966. Geometric analysis of shell coiling: general problems. Journal of Paleontology 40, 1178–1190.
