Generalized Procrustes analysis

import numpy as np
import pandas as pd

import matplotlib.pyplot as plt
import seaborn as sns

from sklearn.decomposition import PCA

from ktch.datasets import load_landmark_mosquito_wings
from ktch.landmark import GeneralizedProcrustesAnalysis
from ktch.plot import plot_explained_variance_ratio

Load mosquito wing landmark dataset

from Rohlf and Slice 1990 Syst. Zool.

data_landmark_mosquito_wings = load_landmark_mosquito_wings(as_frame=True)
data_landmark_mosquito_wings.coords

		x	y
specimen_id	coord_id
1	0	-0.4933	0.0130
	1	-0.0777	0.0832
	2	0.2231	0.0861
	3	0.2641	0.0462
	4	0.2645	0.0261
...	...	...	...
127	13	-0.2028	0.0371
	14	0.0490	0.0347
	15	-0.0422	0.0204
	16	0.1004	-0.0180
	17	-0.1473	-0.0057

2286 rows × 2 columns

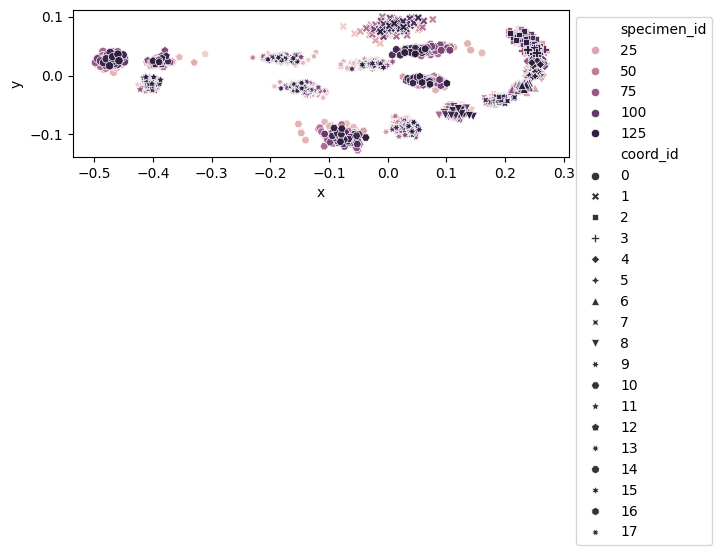

fig, ax = plt.subplots()
sns.scatterplot(
    data=data_landmark_mosquito_wings.coords,
    x="x",
    y="y",
    hue="specimen_id",
    style="coord_id",
    ax=ax,
)
ax.set_aspect("equal")
ax.legend(loc="upper left", bbox_to_anchor=(1, 1))

<matplotlib.legend.Legend at 0x7f9b92384a10>

For applying generalized Procrustes analysis (GPA), we convert the configuration data into DataFrame of shape n_specimens x (n_landmarks*n_dim).

def configulation_plot(
    configuration_2d, links=[], ax=None, hue=None, style=None, s=10, alpha=1
):
    if ax is None:
        fig = plt.figure()
        ax = fig.add_subplot(111)

    configuration = configuration_2d.reset_index()

    for link in links:
        sns.lineplot(
            data=configuration[configuration["coord_id"].isin(link)],
            x="x",
            y="y",
            sort=False,
            ax=ax,
            hue=hue,
            c="gray",
            alpha=alpha,
        )

    axis = sns.scatterplot(
        data=configuration,
        x="x",
        y="y",
        ax=ax,
        hue=hue,
        style=style,
        c="gray",
        alpha=alpha,
        s=s,
    )

    if axis.legend_:
        sns.move_legend(ax, "upper left", bbox_to_anchor=(1, 1))

    ax.set_aspect("equal")

links = [
    [0, 1],
    [1, 2],
    [2, 3],
    [3, 4],
    [4, 5],
    [5, 6],
    [6, 7],
    [7, 8],
    [8, 9],
    [9, 10],
    [10, 11],
    [1, 12],
    [2, 12],
    [13, 14],
    [14, 3],
    [14, 4],
    [15, 5],
    [16, 6],
    [16, 7],
    [17, 8],
    [17, 9],
]

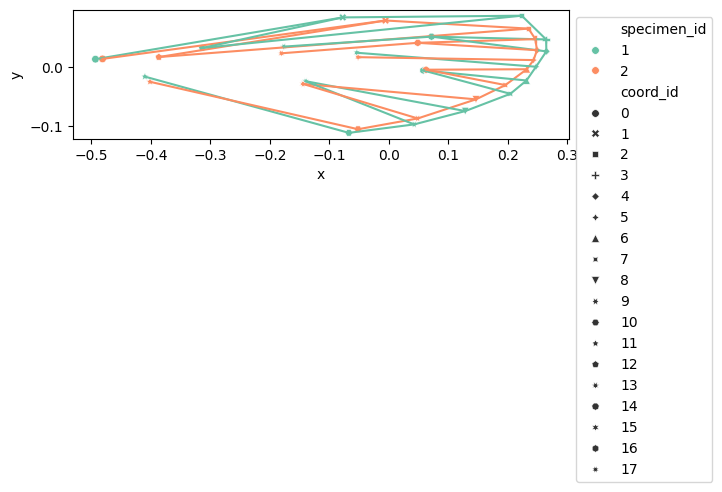

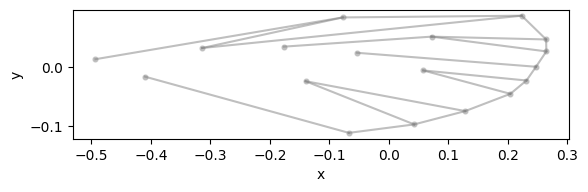

configulation_plot(data_landmark_mosquito_wings.coords.loc[1], links=links, alpha=0.5)

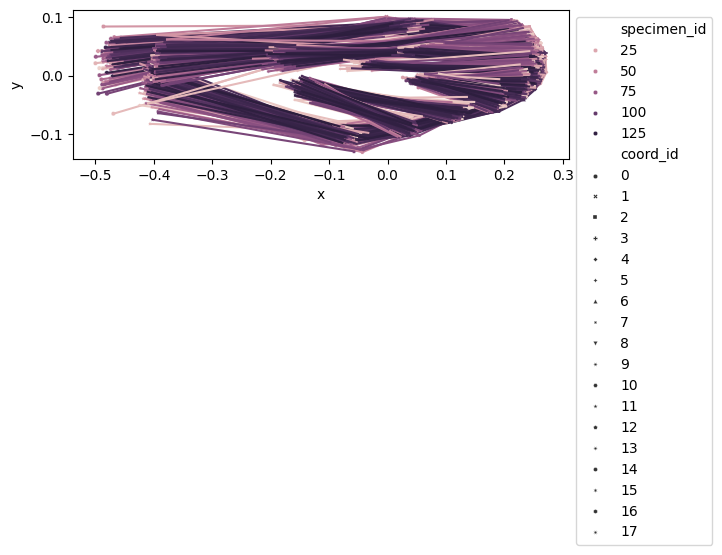

configulation_plot(
    data_landmark_mosquito_wings.coords,
    links=links,
    hue="specimen_id",
    style="coord_id",
)

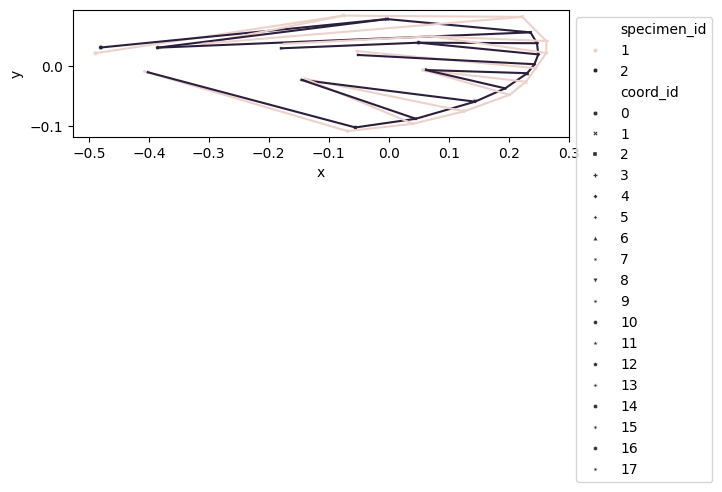

configulation_plot(
    data_landmark_mosquito_wings.coords.loc[0:2],
    links=links,
    hue="specimen_id",
    style="coord_id",
)

df_coords = (
    data_landmark_mosquito_wings.coords.unstack()
    .swaplevel(1, 0, axis=1)
    .sort_index(axis=1)
)
df_coords.columns = [
    dim + "_" + str(landmark_idx) for landmark_idx, dim in df_coords.columns
]
df_coords

	x_0	y_0	x_1	y_1	x_2	y_2	x_3	y_3	x_4	y_4	...	x_13	y_13	x_14	y_14	x_15	y_15	x_16	y_16	x_17	y_17
specimen_id
1	-0.4933	0.0130	-0.0777	0.0832	0.2231	0.0861	0.2641	0.0462	0.2645	0.0261	...	-0.1768	0.0341	0.0715	0.0509	-0.0540	0.0238	0.0575	-0.0059	-0.1401	-0.0240
2	-0.4814	0.0135	-0.0058	0.0780	0.2345	0.0644	0.2460	0.0467	0.2487	0.0281	...	-0.1808	0.0229	0.0484	0.0405	-0.0519	0.0164	0.0623	-0.0047	-0.1444	-0.0286
3	-0.4622	0.0159	0.0089	0.0689	0.2404	0.0545	0.2501	0.0424	0.2600	0.0230	...	-0.1724	0.0182	0.0577	0.0344	-0.0468	0.0115	0.0766	-0.0079	-0.1602	-0.0162
4	-0.4534	-0.0028	-0.0318	0.0738	0.2423	0.0808	0.2627	0.0559	0.2654	0.0322	...	-0.1536	0.0150	0.0617	0.0436	-0.0549	0.0217	0.0705	-0.0031	-0.1507	-0.0273
5	-0.4926	-0.0212	-0.0260	0.0708	0.2347	0.0679	0.2398	0.0584	0.2415	0.0355	...	-0.1374	0.0154	0.0762	0.0457	-0.0313	0.0170	0.0880	0.0037	-0.1318	-0.0278
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
123	-0.4703	-0.0009	0.0011	0.0805	0.2146	0.0747	0.2348	0.0585	0.2453	0.0350	...	-0.1624	0.0193	0.0557	0.0467	-0.0272	0.0190	0.0718	-0.0052	-0.1583	-0.0251
124	-0.4725	0.0441	0.0318	0.0808	0.2382	0.0419	0.2504	0.0237	0.2492	0.0019	...	-0.1724	0.0390	0.0667	0.0418	-0.0108	0.0205	0.0548	-0.0049	-0.1546	-0.0115
125	-0.4697	0.0196	0.0007	0.0850	0.2228	0.0760	0.2485	0.0540	0.2548	0.0319	...	-0.1816	0.0213	0.0376	0.0408	-0.0073	0.0137	0.0592	-0.0103	-0.1531	-0.0300
126	-0.4620	0.0204	0.0082	0.0893	0.2061	0.0797	0.2374	0.0529	0.2457	0.0306	...	-0.1876	0.0241	0.0279	0.0403	-0.0425	0.0145	0.0729	-0.0123	-0.1460	-0.0269
127	-0.4570	0.0468	-0.0090	0.0753	0.2381	0.0463	0.2556	0.0275	0.2614	0.0064	...	-0.2028	0.0371	0.0490	0.0347	-0.0422	0.0204	0.1004	-0.0180	-0.1473	-0.0057

127 rows × 36 columns

GPA

gpa = GeneralizedProcrustesAnalysis().set_output(transform="pandas")

df_shapes = gpa.fit_transform(df_coords)
df_shapes

	x_0	y_0	x_1	y_1	x_2	y_2	x_3	y_3	x_4	y_4	...	x_13	y_13	x_14	y_14	x_15	y_15	x_16	y_16	x_17	y_17
specimen_id
1	-0.488913	0.021159	-0.075651	0.083813	0.222655	0.081656	0.262641	0.041408	0.262701	0.021471	...	-0.174735	0.036786	0.071747	0.049290	-0.053145	0.024519	0.056916	-0.006796	-0.139317	-0.021437
2	-0.479850	0.030667	-0.002995	0.078029	0.236289	0.055873	0.247131	0.037801	0.249161	0.019145	...	-0.179578	0.029304	0.049746	0.038675	-0.051194	0.018213	0.062000	-0.006922	-0.145098	-0.023383
3	-0.461238	0.021194	0.009668	0.068674	0.240606	0.051631	0.250150	0.039440	0.259809	0.019959	...	-0.171907	0.020150	0.057987	0.033671	-0.046599	0.012014	0.076367	-0.008775	-0.160124	-0.014331
4	-0.451582	0.021733	-0.027671	0.075199	0.245617	0.067345	0.264582	0.041450	0.265988	0.017707	...	-0.152122	0.023242	0.063790	0.040074	-0.053488	0.024575	0.070026	-0.006899	-0.151522	-0.019031
5	-0.491092	0.019428	-0.020015	0.072475	0.238724	0.048169	0.243009	0.038313	0.242816	0.015425	...	-0.135231	0.026596	0.079447	0.039142	-0.029701	0.019466	0.087717	-0.003550	-0.133219	-0.016779
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
123	-0.468838	0.028646	0.006143	0.080164	0.218584	0.060969	0.237700	0.043553	0.246690	0.019469	...	-0.160671	0.029436	0.058442	0.043044	-0.025929	0.020642	0.071228	-0.009699	-0.159374	-0.015077
124	-0.473804	0.016670	0.027045	0.082425	0.235150	0.055559	0.248370	0.038112	0.248433	0.016300	...	-0.174200	0.028931	0.064108	0.045546	-0.011957	0.019822	0.054939	-0.001719	-0.153528	-0.020407
125	-0.468449	0.032047	0.002958	0.084844	0.224473	0.069955	0.249549	0.047306	0.255251	0.025073	...	-0.180752	0.026088	0.038626	0.039732	-0.006925	0.013867	0.058834	-0.011863	-0.153659	-0.025890
126	-0.459471	0.036434	0.011277	0.088662	0.208061	0.072197	0.238303	0.044411	0.245792	0.021909	...	-0.186025	0.030549	0.029190	0.039168	-0.041832	0.015925	0.072178	-0.014794	-0.146368	-0.021701
127	-0.457745	0.025260	-0.012492	0.074647	0.235186	0.057309	0.253512	0.039387	0.260281	0.018625	...	-0.203892	0.027493	0.047226	0.036891	-0.043017	0.018365	0.100931	-0.013236	-0.146563	-0.012573

127 rows × 36 columns

We create a DataFrame, called df_shapes_vis, of shape (n_specimens*n_landmarks) x n_dim to visualize the aligned shapes.

df_shapes_vis = df_shapes.copy()
df_shapes_vis.columns = pd.MultiIndex.from_tuples(
    [
        [int(landmark_idx), dim]
        for dim, landmark_idx in [idx.split("_") for idx in df_shapes_vis.columns]
    ],
    names=["coord_id", "dim"],
)
df_shapes_vis.sort_index(axis=1, inplace=True)
df_shapes_vis = df_shapes_vis.swaplevel(0, 1, axis=1).stack(level=1, future_stack=True)
df_shapes_vis

	dim	x	y
specimen_id	coord_id
1	0	-0.488913	0.021159
	1	-0.075651	0.083813
	2	0.222655	0.081656
	3	0.262641	0.041408
	4	0.262701	0.021471
...	...	...	...
127	13	-0.203892	0.027493
	14	0.047226	0.036891
	15	-0.043017	0.018365
	16	0.100931	-0.013236
	17	-0.146563	-0.012573

2286 rows × 2 columns

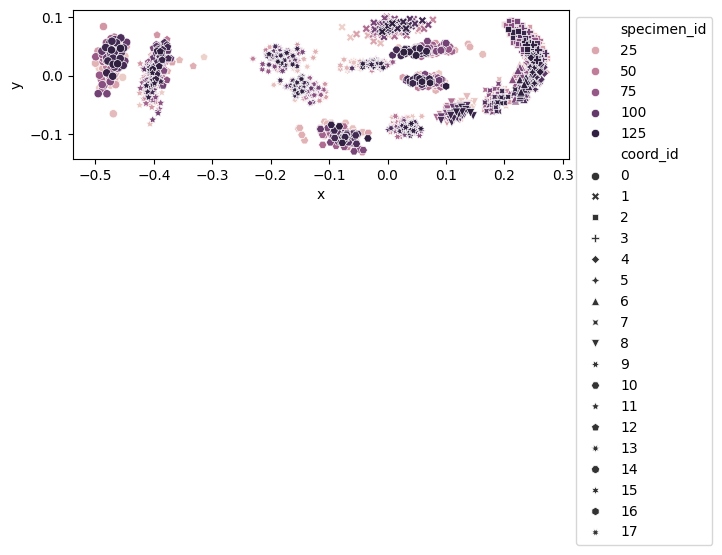

fig, ax = plt.subplots()
sns.scatterplot(
    data=df_shapes_vis, x="x", y="y", hue="specimen_id", style="coord_id", ax=ax
)
ax.set_aspect("equal")
ax.legend(loc="upper left", bbox_to_anchor=(1, 1))

<matplotlib.legend.Legend at 0x7f9b879bda10>

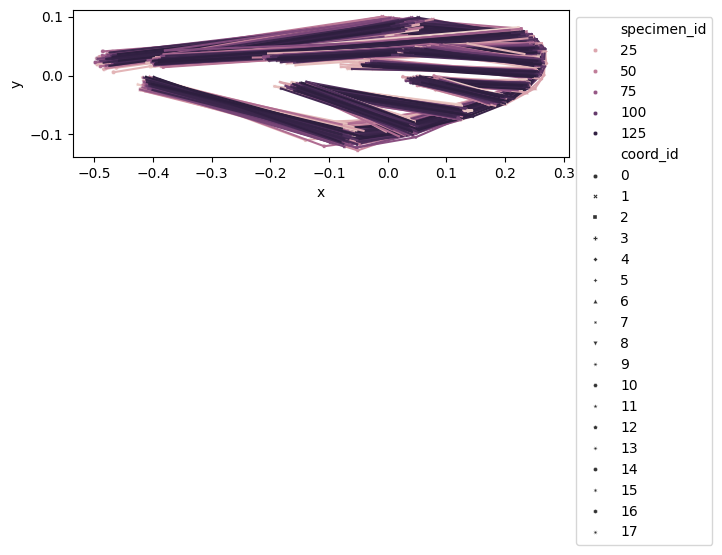

configulation_plot(df_shapes_vis, links=links, hue="specimen_id", style="coord_id")

configulation_plot(
    df_shapes_vis.loc[0:2], links=links, hue="specimen_id", style="coord_id"
)

PCA

pca = PCA(n_components=10).set_output(transform="pandas")
df_pca = pca.fit_transform(df_shapes)

df_pca = df_pca.join(data_landmark_mosquito_wings.meta)
df_pca

	pca0	pca1	pca2	pca3	pca4	pca5	pca6	pca7	pca8	pca9	genus
specimen_id
1	-0.003856	-0.093210	0.029908	0.049589	-0.007598	0.042657	-0.005370	0.010359	-0.011595	0.034991	AN
2	-0.029857	-0.023434	0.006114	-0.017268	-0.014229	0.014271	0.013344	0.021849	-0.011211	0.005069	AN
3	-0.012572	-0.019728	-0.034610	-0.025665	-0.005116	-0.017905	0.008511	-0.004312	0.001597	0.009884	AN
4	-0.001652	-0.049890	-0.034137	-0.001013	0.019706	-0.010102	-0.001692	-0.010425	0.021595	-0.006472	AN
5	0.026869	-0.032989	0.010228	-0.051852	0.016741	0.023749	0.015917	-0.000273	-0.013100	0.012755	AN
...	...	...	...	...	...	...	...	...	...	...	...
123	-0.007864	-0.009853	-0.006369	-0.026082	-0.025424	0.013786	-0.009967	-0.018669	0.000513	-0.005515	CX
124	-0.005360	0.014451	-0.014347	-0.013199	0.000102	0.001379	-0.002919	-0.009755	-0.020409	-0.017790	CX
125	-0.030056	0.000885	0.013455	0.000542	-0.008940	0.008503	-0.021390	-0.014563	-0.003408	-0.010083	CX
126	-0.048757	-0.000199	0.024147	-0.029841	-0.040190	0.013335	0.000598	0.016086	0.018985	0.004560	DE
127	-0.017155	-0.030018	-0.001935	-0.014438	-0.014540	-0.035565	-0.011888	0.017324	-0.009739	0.012342	DE

127 rows × 11 columns

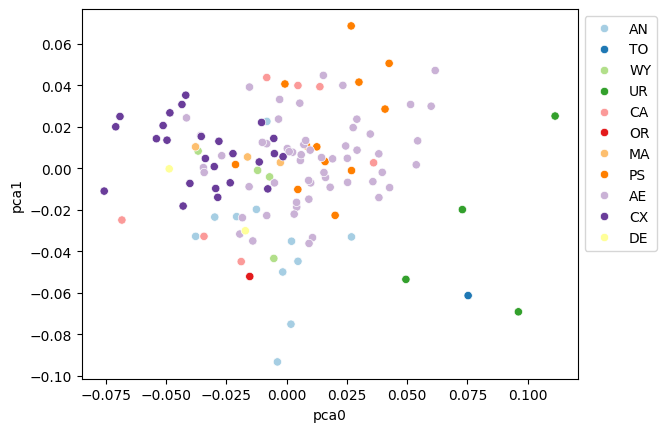

fig, ax = plt.subplots()
sns.scatterplot(data=df_pca, x="pca0", y="pca1", hue="genus", palette="Paired", ax=ax)
ax.legend(loc="upper left", bbox_to_anchor=(1, 1))

<matplotlib.legend.Legend at 0x7f9b7fe42a90>

Morphospace

def get_pc_scores_for_morphospace(ax, num=5):
    xrange = np.linspace(ax.get_xlim()[0], ax.get_xlim()[1], num)
    yrange = np.linspace(ax.get_ylim()[0], ax.get_ylim()[1], num)
    return xrange, yrange


def plot_recon_morphs(
    pca,
    fig,
    ax,
    n_PCs_xy=[1, 2],
    morph_num=3,
    morph_alpha=1.0,
    morph_scale=1.0,
    links=[],
):
    pc_scores_h, pc_scores_v = get_pc_scores_for_morphospace(ax, morph_num)
    print("PC_h: ", pc_scores_h, ", PC_v: ", pc_scores_v)
    for pc_score_h in pc_scores_h:
        for pc_score_v in pc_scores_v:
            pc_score = np.zeros(pca.n_components_)
            n_PC_h, n_PC_v = n_PCs_xy
            pc_score[n_PC_h - 1] = pc_score_h
            pc_score[n_PC_v - 1] = pc_score_v

            arr_shapes = pca.inverse_transform([pc_score])
            arr_shapes = arr_shapes.reshape(-1, 2)

            df_shapes = pd.DataFrame(arr_shapes, columns=["x", "y"])
            df_shapes["coord_id"] = [i for i in range(len(df_shapes))]
            df_shapes = df_shapes.set_index("coord_id")

            # print(df_shapes)

            ax_width = ax.get_window_extent().width
            fig_width = fig.get_window_extent().width
            fig_height = fig.get_window_extent().height
            morph_size = morph_scale * ax_width / (fig_width * morph_num)
            loc = ax.transData.transform((pc_score_h, pc_score_v))

            if arr_shapes.shape[1] == 3:
                axins = fig.add_axes(
                    [
                        loc[0] / fig_width - morph_size / 2,
                        loc[1] / fig_height - morph_size / 2,
                        morph_size,
                        morph_size,
                    ],
                    anchor="C",
                    projection="3d",
                )
                axins.patch.set_alpha(0.3)

                configulation_plot(df_shapes, links=links, ax=axins, alpha=morph_alpha)

            else:
                axins = fig.add_axes(
                    [
                        loc[0] / fig_width - morph_size / 2,
                        loc[1] / fig_height - morph_size / 2,
                        morph_size,
                        morph_size,
                    ],
                    anchor="C",
                )
                configulation_plot(df_shapes, links=links, ax=axins, alpha=morph_alpha)

            axins.axis("off")

morph_num = 5
morph_scale = 1.0
morph_alpha = 0.5

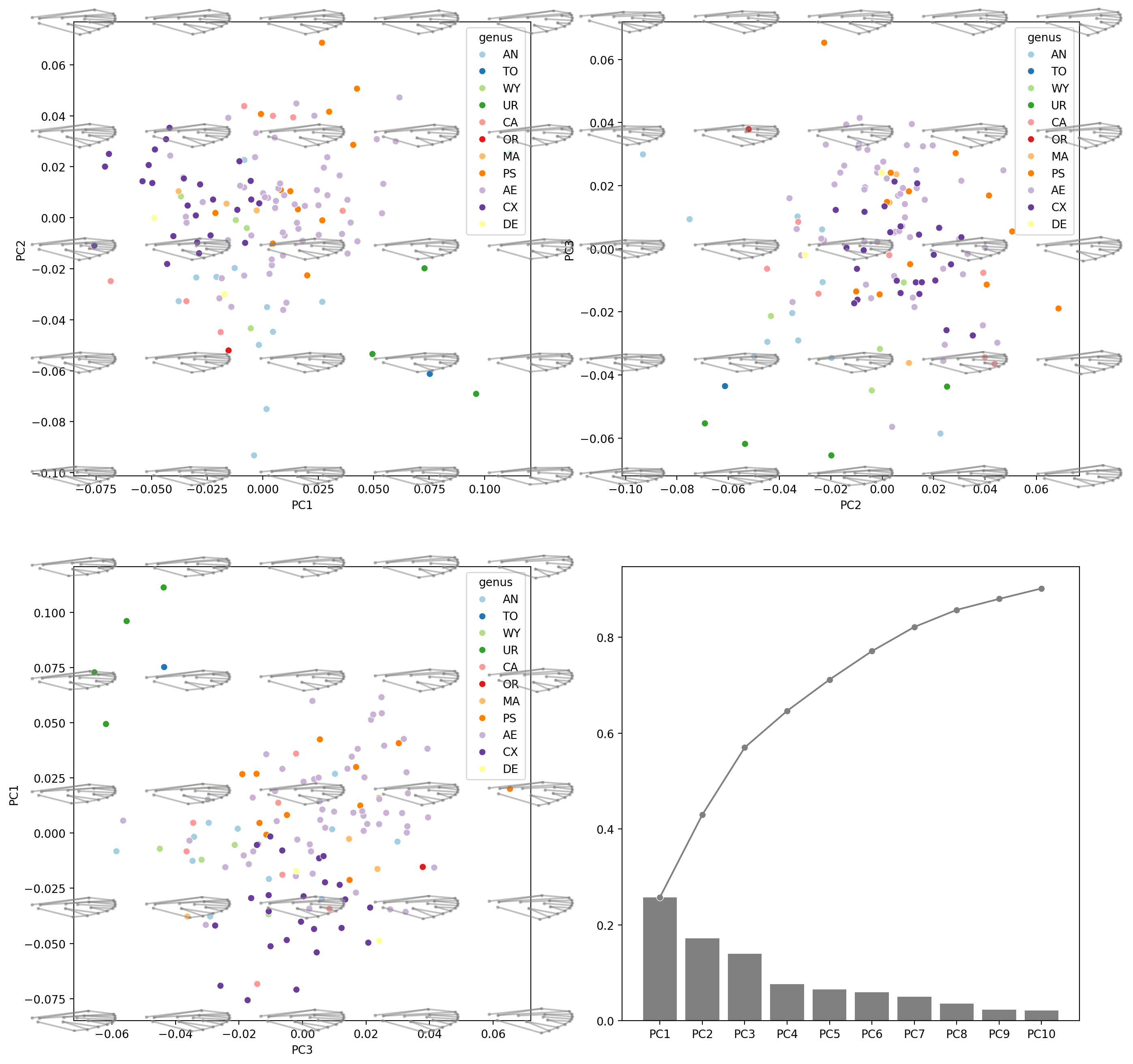

fig = plt.figure(figsize=(16, 16), dpi=200)
hue_order = df_pca["genus"].unique()

#########
# PC1
#########
ax = fig.add_subplot(2, 2, 1)
sns.scatterplot(
    data=df_pca,
    x="pca0",
    y="pca1",
    hue="genus",
    hue_order=hue_order,
    palette="Paired",
    ax=ax,
    legend=True,
)

plot_recon_morphs(
    pca,
    morph_num=5,
    morph_scale=morph_scale,
    morph_alpha=0.5,
    fig=fig,
    ax=ax,
    links=links,
)

ax.patch.set_alpha(0)
ax.set(xlabel="PC1", ylabel="PC2")

print("PC1-PC2 done")

#########
# PC2
#########
ax = fig.add_subplot(2, 2, 2)
sns.scatterplot(
    data=df_pca,
    x="pca1",
    y="pca2",
    hue="genus",
    hue_order=hue_order,
    palette="Paired",
    ax=ax,
    legend=True,
)

plot_recon_morphs(
    pca,
    morph_num=5,
    morph_scale=morph_scale,
    morph_alpha=0.5,
    fig=fig,
    ax=ax,
    links=links,
    n_PCs_xy=[2, 3],
)


ax.patch.set_alpha(0)
ax.set(xlabel="PC2", ylabel="PC3")

print("PC2-PC3 done")

#########
# PC3
#########
ax = fig.add_subplot(2, 2, 3)
sns.scatterplot(
    data=df_pca,
    x="pca2",
    y="pca0",
    hue="genus",
    hue_order=hue_order,
    palette="Paired",
    ax=ax,
    legend=True,
)

plot_recon_morphs(
    pca,
    morph_num=5,
    morph_scale=morph_scale,
    morph_alpha=0.5,
    fig=fig,
    ax=ax,
    links=links,
    n_PCs_xy=[3, 1],
)


ax.patch.set_alpha(0)
ax.set(xlabel="PC3", ylabel="PC1")

print("PC3-PC1 done")

#########
# CCR
#########

ax = fig.add_subplot(2, 2, 4)
plot_explained_variance_ratio(pca, ax=ax, verbose=True)

PC_h:  [-0.08507944 -0.03363238  0.01781469  0.06926176  0.12070883] , PC_v:  [-0.10130283 -0.05679242 -0.01228202  0.03222838  0.07673878]

PC1-PC2 done
PC_h:  [-0.10130283 -0.05679242 -0.01228202  0.03222838  0.07673878] , PC_v:  [-7.20613317e-02 -3.60802028e-02 -9.90738801e-05  3.58820550e-02
  7.18631840e-02]

PC2-PC3 done
PC_h:  [-7.20613317e-02 -3.60802028e-02 -9.90738801e-05  3.58820550e-02
  7.18631840e-02] , PC_v:  [-0.08507944 -0.03363238  0.01781469  0.06926176  0.12070883]

PC3-PC1 done
Explained variance ratio:
['PC1 0.25758090980106463', 'PC2 0.17223024539391402', 'PC3 0.1402677835736617', 'PC4 0.0763462878404697', 'PC5 0.06525408598811429', 'PC6 0.05936398220741054', 'PC7 0.05041804355293129', 'PC8 0.03566678305170681', 'PC9 0.022911799413012413', 'PC10 0.02174073028592705']
Cumsum of Explained variance ratio:
['PC1 0.25758090980106463', 'PC2 0.42981115519497864', 'PC3 0.5700789387686404', 'PC4 0.6464252266091101', 'PC5 0.7116793125972244', 'PC6 0.771043294804635', 'PC7 0.8214613383575663', 'PC8 0.8571281214092731', 'PC9 0.8800399208222855', 'PC10 0.9017806511082126']

<Axes: >
